J&E Hall

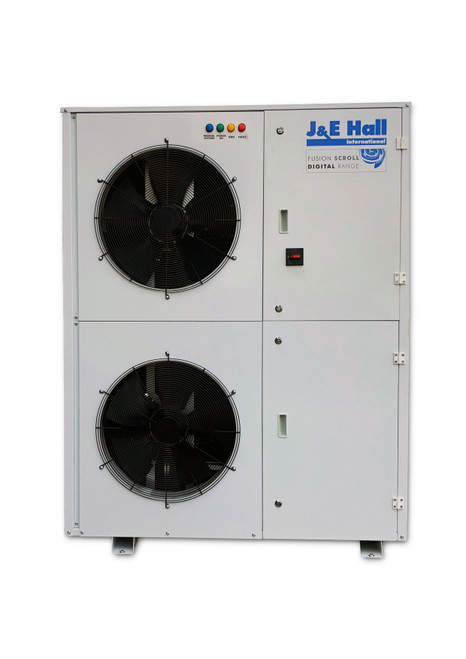

J&E Hall JEHSDT-1600-B6-M-3 Condensing Unit Medium Temperature 400V/3Ph/50Hz

Part No: JEHSDT-1600-B6-M-3

Medium Temp (MT)
R448A / R449A
400V 3Ph

Trade pricing is available to registered account holders.

FGAS FGAS certification is required to purchase this product.

Description

The J&E Hall Fusion Digital Scroll condensing unit uses a Copeland Digital Scroll compressor for variable capacity control (from 10-100%). 16HP, 400V/3Ph/50Hz. Compatible with R448A, R449A. Features include variable capacity compressor, fan speed control, dual pressure switch, acoustic insulation, IP-rated enclosure. Ideal for Medium Temp (MT) applications requiring precise temperature control and energy efficiency. Up to 50m pipe run. An oil separator is recommended for pipe runs exceeding 20m.

Specification
