J&E Hall

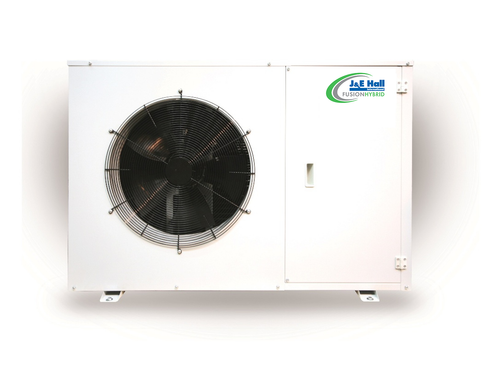

J&E Hall JEHR-0170-H2-M-3 Fusion Hybrid Condensing Unit Medium Temp (MT) 2.57kW

Part No: JEHR-0170-H2-M-3
  • 2.57kW
  • Medium Temp (MT)
  • R448A / R449A +
  • 400V 3Ph
Sign in to see pricing

Trade pricing is available to registered account holders.

FGAS FGAS certification is required to purchase this product.

Description
The J&E Hall JEHR-0170-H2-M-3 is a Fusion Hybrid (V4) housed condensing unit for commercial cold room and walk-in refrigeration, approved for both A1 non-flammable refrigerants (R448A / R449A / R452A) and mildly flammable A2L refrigerants (R454C / R455A). Cooling capacity 2.57 kW at -10°C/+32°C (R448A/R449A, dew point, 20°C return gas). 400V/3Ph/50Hz supply. Weatherproof low-noise housing (33 dB(A) at 10 m). Dimensions 1101 x 444 x 662 mm, weight 68 kg. Hot gas or off-cycle defrost. 3 year warranty.
Specification
AFR code:
JEHR-0170-H2-M-3
J&E Hall JEHR-0170-H2-M-3 Fusion Hybrid condensing unit, Medium Temp (MT), 2.57kW at -10°C/+32°C, A1 (R448A/R449A/R452A) + A2L (R454C/R455A), 400V/3Ph/50Hz.
