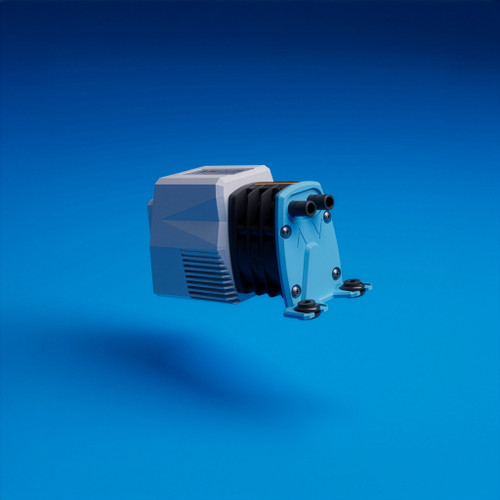

Blue Diamond MaxiBlue V2 Condensate Pump with Reservoir & Alarm – X88-701

The Blue Diamond MaxiBlue V2 is a quiet, self-priming condensate removal pump for mini-split and cassette air conditioning systems up to 14kW. Its rotary diaphragm design, soft start and automatic flow adjustment make it suitable for installations where low noise and flexible pump positioning matter.

Supplied with a CondenSense reservoir sensor and volt-free alarm contacts, plus audible and LED warnings. The reservoir sensor detects condensate levels and automatically adjusts pump operation to suit demand.

Specifications

• Maximum flow: 14 litres/hour

• Maximum discharge head: 8 metres

• Maximum suction lift: 8 metres

• Noise level: 19–21 dB(A), depending on operating flow

• Supply: 115–230V, 50/60Hz

• Power consumption: 5.5W

• Pump dimensions: 148 × 57 × 74mm

• Pump weight: 0.64kg

• Pump connections: 8mm straight inlet and outlet

• Protection rating: IPX4

• Manufacturer warranty: 3 years

• Manufacturer part number: X88-701
